流线型外观，采用精准的透镜和黑镜反射器设计，保证出光的同时仍能达到极致的防眩效果，调角全程无杂斑。封密式光源腔，最大程度减少潮湿环境对其性能的影响；可自由拆卸并更换反射器或配件，极大的提高了现场的便利性。
4/5/6寸灯具详细尺寸图
对流散热+包围式烟囱散热，提升散热性能
有力保障其在潮湿环境下的性能稳定
实际点亮展示，光斑干净、柔和，无杂项光线
兼具出光与防眩设计，调角全程无杂散光
VOLTA

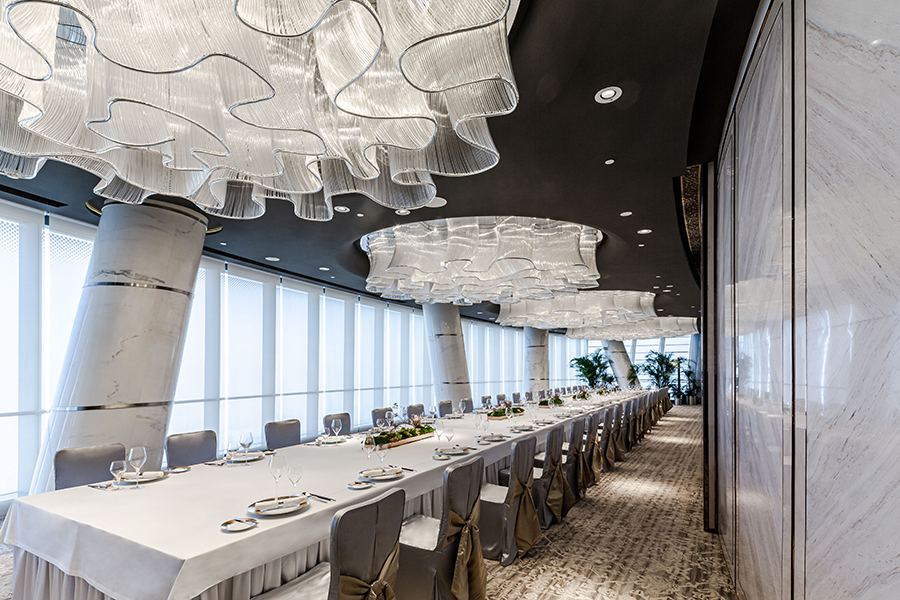

上海中心J酒店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 4 4” | 5 Square Trim | LD08 LED 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 4 4” | 5 Square Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 4 4” | 5 Square Trim | LM18 COB 18W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 5 5” | 5 Square Trim | LD24 LED 24W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 5 5” | 5 Square Trim | LM18 COB 18W LM25 COB 25W LM32 COB 32W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 5 5” | 5 Square Trim | LM32 COB 32W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 6 6” | 5 Square Trim | LD32 LED 32W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 6 6” | 5 Square Trim | LM32 COB 32W LM43 COB 43W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：DDT65-LM43E-230SWT
